Sunday, October 25, 2015

Simple AD8307 rf power meter for sweeper using ad9850 dds and arduino for testing crystals etc

ADVERTISEMENT
Sweeping a 14.318 crystal on the dds sweeper
After finishing with a simple vswr plotter using an arduino pro mini and a tft, i decided to improve the rf measurement section of the analyser with an ad8307 based power rf meter. The desig is simple and is popular among hobbyists. I got hold of an ad8307 in smd form, too small for me. So the challenge was to try some ugly construction using a piece of copperclad. Ideaa is to keep a large ground plane by leaving the entire copper board as ground. It was pretty easier than my guess. The idea is to use a sharp engraving knife to make small lines and islands of copper to be used as solder points.  So no etching as i used in my previous post (Salt water etching for a simple pcb).

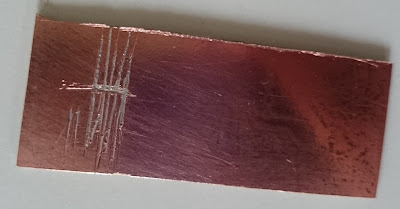

So first i drew some lines on the copper board to allow the smd ad8307 pins to be soldered. The ugly board is shown in the following figures.



lines drawn on the copper clad for the ad8307

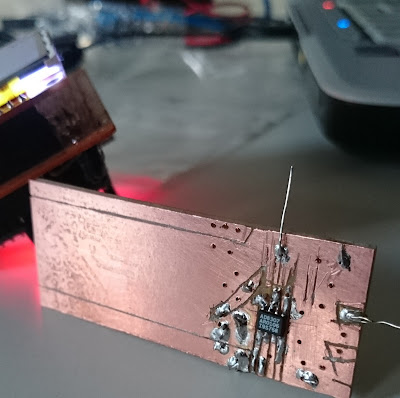

and here is how it looks after finishing up

finished rf power measuring board

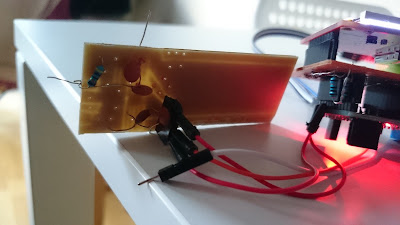

and the whole board with arduino
rf power meter with arduino

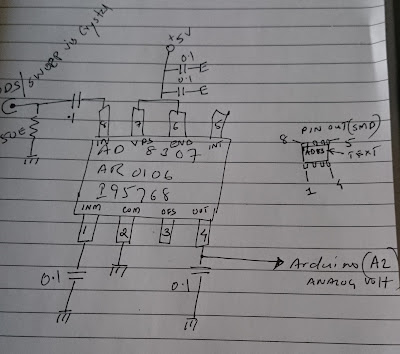

And the schematic is here
Schematic for rf power meter with ad8307

To generate a sweep signal, i used the same code as in my antenna /vswr plotter and the voltage output from ad8307 is read by an analogue pin on the atmega328 and plotted on the tft. Some of figures from sweeping a crystal at 14.318 mhz is shown below





Next step is to integrate in to the swr bridge and use it as a vswr meter. I will soon  update with the code, once it is finished. Thanks for visiting


Read more on the progress: https://www.riyas.org/2017/04/a-compact-swr-analyser-and-wspr-signal-generator.html

Test snippet for ad8307 power meter (connect the output voltage from ad8307 to A1 pin or PC1 on atmega) and hook up an LCD shield


//Sample using LiquidCrystal library
#include <LiquidCrystal.h>
#include <OneWire.h>
LiquidCrystal lcd(8, 9, 4, 5, 6, 7);

// define some values used by the panel and buttons
int lcd_key     = 0;
int adc_key_in  = 0;
#define btnRIGHT  0
#define btnUP     1
#define btnDOWN   2
#define btnLEFT   3
#define btnSELECT 4
#define btnNONE   5

long readVcc() {
  long result;
  // Read 1.1V reference against AVcc
  ADMUX = _BV(REFS0) | _BV(MUX3) | _BV(MUX2) | _BV(MUX1);
  delay(2); // Wait for Vref to settle
  ADCSRA |= _BV(ADSC); // Convert
  while (bit_is_set(ADCSRA,ADSC));
  result = ADCL;
  result |= ADCH<<8;
  result = 1126400L / result; // Back-calculate AVcc in mV
  return result;
}


void setup()
{

Serial.begin(9600); // initialize serial communication at 9600 bits per second:

  lcd.begin(16, 2); // set up the LCD's number of columns and rows:
  lcd.setCursor(5, 0); // (note: line 1 is the second row, since counting begins with 0):
  lcd.print("LB7UG"); // Print a message to the LCD.
  lcd.setCursor(1, 1); // (note: line 1 is the second row, since counting begins with 0):
  lcd.print("RF-Power meter"); // Print a message to the LCD.
  delay(4000); //Delay 4 sek
  lcd.clear(); //clear display
  //analogReference(INTERNAL);

}

void loop()
{
  float bvoltage=readVcc()/1000.0;//get the vcc voltage rail.
  int sensorValue = analogRead(A1);// read the input on analog pin 0:
  float voltage = sensorValue * (bvoltage / 1023.0);  // Convert the analog reading (which goes from 0 - 1023) to a voltage (0 - 5V):

  //double dBm=(voltage-2.1808f)/0.025f; // calculate dBm
  double dBm=((voltage-2.160f)/0.025f)+20; // calculate dBm and add20 for attenuator

  double Pu= pow( 10.0, (dBm+30) / 10.0); //pwr in uW
  double Pm= pow( 10.0, (dBm) / 10.0); //pwr in mW
  double Pw= pow( 10.0, (dBm-30) / 10.0); //pwr in W
  Serial.print(voltage); Serial.print("V");
  Serial.print(dBm);Serial.println("dBm");
  lcd.setCursor(0, 0);
  lcd.print(dBm);lcd.print("dBm");
  lcd.setCursor(0, 1);
  if (dBm <= 0) goto PrintPu; // jump to print uW
  if (dBm >= 30) goto PrintPw; // jump to print W
  Serial.print(Pm); Serial.println("mW"); // print mW
  lcd.print(Pm);lcd.print("mW"); // print mW on LCD
PrintPu :
  if (dBm <= 0)  Serial.print(Pu); if (dBm <= 0)  Serial.println("uW"); // print uW
  if (dBm <= 0)  lcd.print(Pu); if (dBm <= 0)  lcd.print("uW"); // print uW
  PrintPw :
  if (dBm >= 30) Serial.print(Pw); if (dBm >= 30) Serial.println("W");// print W
  if (dBm >= 30) lcd.print(Pw); if (dBm >= 30) lcd.print("W");// print W
  lcd.setCursor(10, 1);
  lcd.print(sensorValue);
  lcd.setCursor(10, 0);
  lcd.print(voltage);
  delay(500);
  lcd.clear();

}
